Smart Battery Maintenance Chargers

Click to download FULL PDF - Bulletin 1371

1 Amp Smart Trickle Battery Charger

Part No: VLC1056

1 Amp Smart Trickle Battery Charger

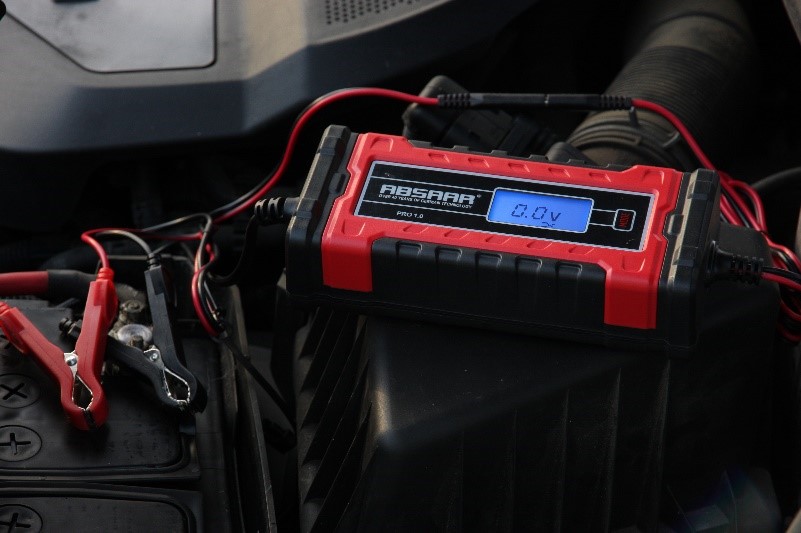

Keep your battery performing at its best and lasting longer with our fully automatic smart battery chargers and conditioners.

These smart chargers have an in-built microprocessor that quickly analyses battery condition to identify issues and then regulates the battery charge to ensure maximum battery performance. The chargers have specific charging modes for different types of battery including LEAD ACID, GEL and AGM units. The units also include temperature responsive winter charging mode which adjusts the charging voltage depending on the ambient temperature.

The range includes 1, 4 and 8 Amp Smart Chargers which also include an automatic battery recovery or desulphation mode to help prolong the life of a battery.

Contents include:

Robust construction charging unit with back-lit LCD Heavy duty, colour-coded crocodile clips Quick-disconnect ring style battery terminals (for long-term charging and hard to reach batteries) Connectors all fitted with dust covers to keep clean when not in use 2 and 3 PIN mains power plugs

Features

Amperage: 1 Amp / 1Ah charging rate Volt: 6 / 12V Maximum battery size for maintenance charge: 120Ah 11-stage micro-processor controlled charging process Different charging modes for STANDARD LEAD ACID, AGM, GEL batteries Back-lit LCD display CE, TUV certified

Benefits

Fully-automatic operation with 'plug-in and forget' smart charging In-built diagnostics to quickly determine if serious battery faults exist Overloads, short circuits and reverse polarity protection Compatible with charging more complex batteries including those vehicles fitted with start/stop technology Winter charging mode, adjusts charging voltage dependant on ambient temperature

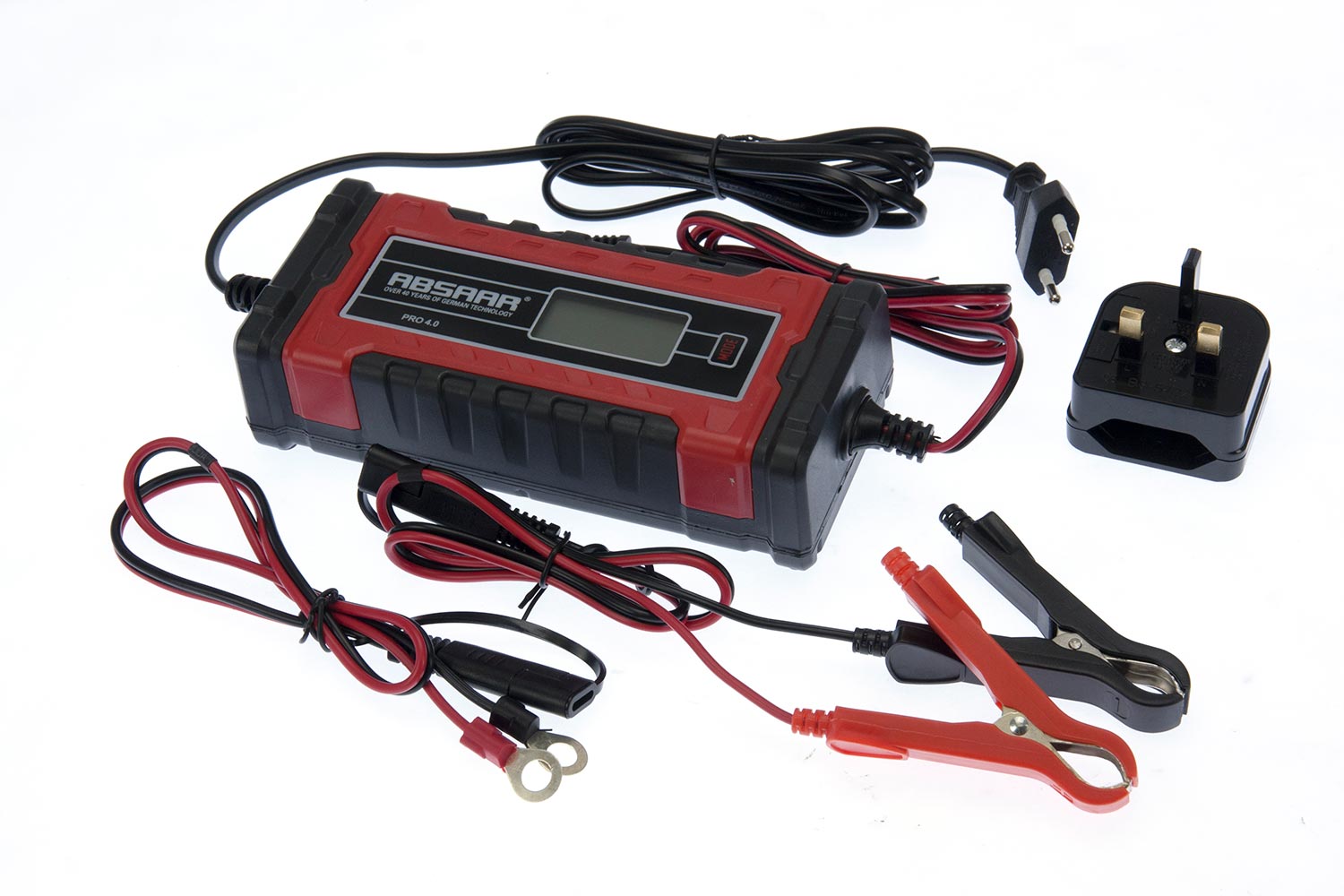

4 Amp Smart Trickle Battery Charger

Part No: VLC1061

4 Amp Smart Trickle Battery Charger

Smart "plug-in and forget" charger keeps your battery at its best and lasting longer. Automatic in-built battery recovery and desulphation mode. Ideal for use with: ride-on lawnmowers, vintage & custom show vehicles, quad-bikes, ATV's, agricultural vehicles and motorhomes. Different charging modes for standard lead, AGM and GEL batteries. Quick-disconnect ring style battery terminals (for long-term charging and hard-to-reach batteries). Responsive winter charging mode adjusts charging voltage depending on the ambient temperature. Suitable for Euro 2 pin and UK 3 pin plug power connections.

Features:

- Amperage: 4 Amp/ 4Ah charge rate - Volt: 6 / 12V - Max battery size for maintenance charge: 140Ah - Max battery size for charging: 95Ah - Battery recovery and desulphation mode - 11-stage micro-processor controlled charging process - Overload, short circuit & reverse polarity protection - LCD display - CE, TUV, GS, CCA certified.

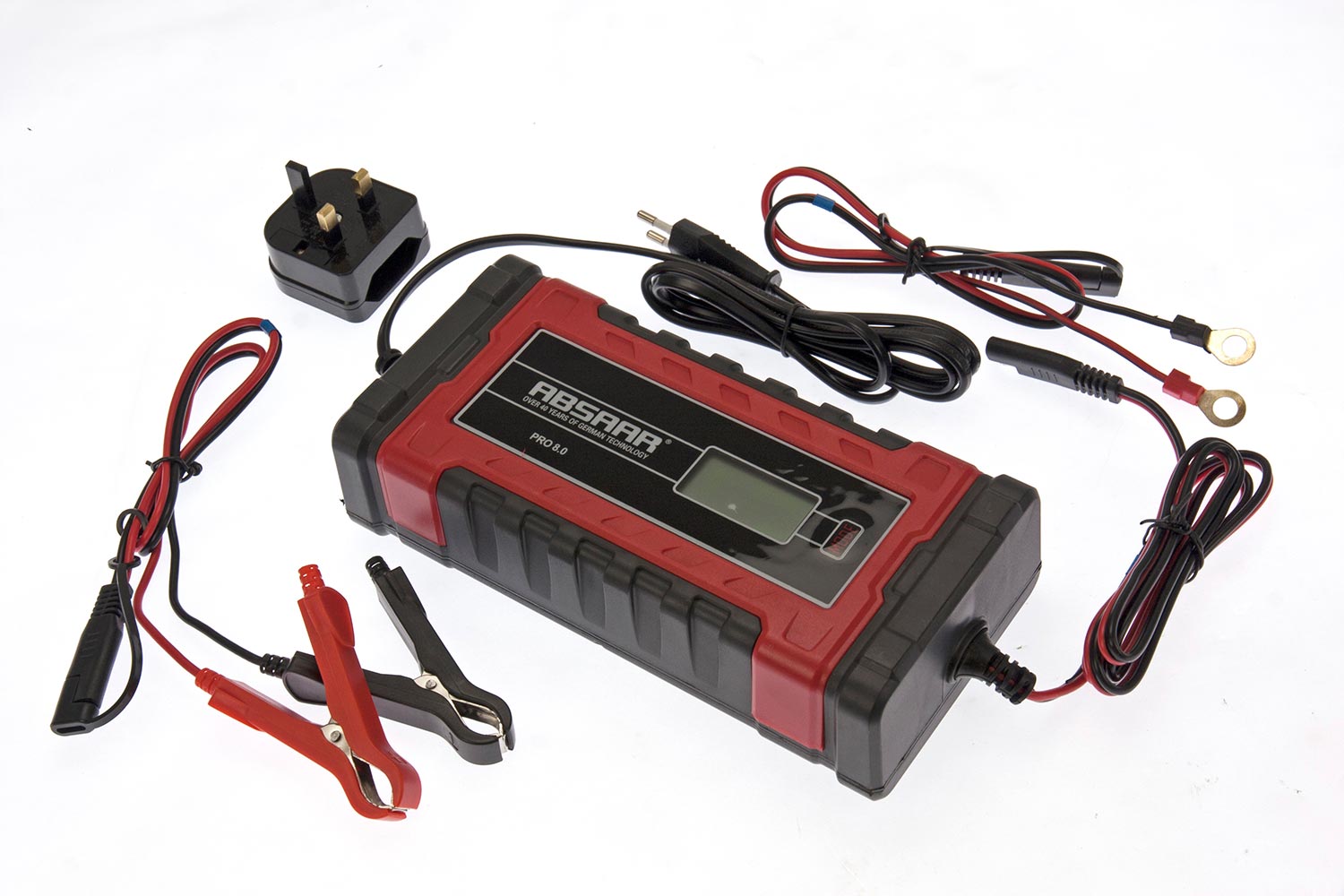

8 Amp Smart Trickle Battery Charger

Part No: VLC1062

8 Amp Smart Trickle Battery Charger

Smart "plug-in and forget" charger keeps your battery at its best and lasting longer. Automatic in-built battery recovery and desulphation mode. Ideal for use with: ride-on lawnmowers, vintage & custom show vehicles, quad-bikes, ATV's, agricultural vehicles and motorhomes. Different charging modes for standard lead, AGM and GEL batteries. Quick-disconnect ring style battery terminals (for long-term charging and hard-to-reach batteries). Responsive winter charging mode adjusts charging voltage depending on the ambient temperature. Suitable for Euro 2 pin and UK 3 pin plug power connections.

Features:

- Amperage: 8 Amp/ 8Ah charge rate - Volt: 6 / 12V - Max battery size for maintenance charge: 220Ah - Max battery size for charging: 160Ah - Battery recovery and desulphation mode - 11-stage micro-processor controlled charging process - Overload, short circuit & reverse polarity protection - LCD display - CE, TUV, GS, CCA certified.
